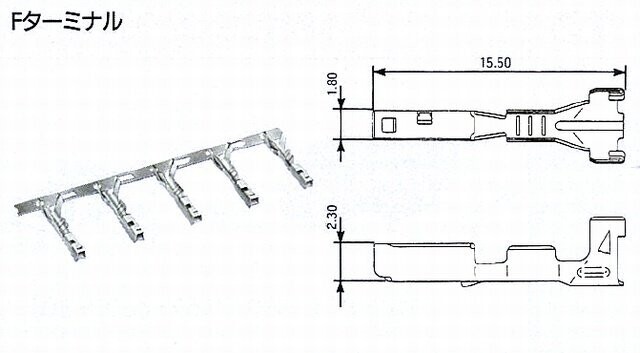

7116-1680-08

Name: 7116-1680-08
SKU: 00096
Availability: OutOfStock

£0.00

Sold out

Product Details

Classified Parts	Terminal
Family	SSD Connectors
Type	-
Yazaki Part Number	7116-1680-08
Connection Type	Wire to Wire Wire to Board Wire to Device
Unsealed/Sealed	Sealed
Male/Female	Female
Number of Poles	-
Tab Width mm(inches)	1.2(048)
Material	Copper Alloy
Plating	Gold Plating
Colour	-
Rating	-
Mating Part Numbers	7114-1680-08
Product Specification No.	YPES-11-04-029
Instruction Manual No.	YPES-15-106

Product Specification
Allowable Current(Ref.)	Refer to the table of Housing
Low Level Contact Resistance	Refer to the table of Housing
Insulation Resistance	Refer to the table of Housing
Withstanding Voltage	Refer to the table of Housing
Temperature Range	Refer to the table of Housing

Application List of Installable Components
Wire Type	Wire Size(mm2)	Wire Seals
AVS	0.3 to 0.5	7157-3951-60
CAVS	0.3 to 0.5	7157-3950-80
CAVS	0.85	7157-3951-60
