7158-3003-90 x 2,000pcs

7158-3003-90 x 2,000pcs

Store / Seal / 2.3II(090II) / 1.5(060) Seals
£145.00
Estimated delivery time
Shipping: 14–19 days
In stock
Product Details

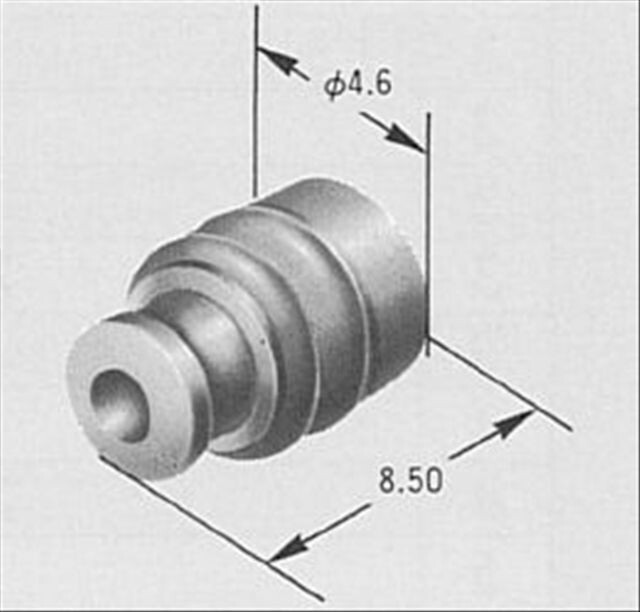

Classified Parts Wire Seal
Family 2.3II(090II) Connectors 1.5(060) Connectors
Type -
Yazaki Part Number 7158-3003-90
Connection Type Wire to Wire
Wire to Board
Wire to Device
Unsealed/Sealed Sealed
Male/Female N/A
Number of Poles -
Tab Width mm(inches) N/A
Material silicon
Plating -
Colour Blue
Rating -
Mating Part Numbers
-
Product Specification No. YPES-11-04-019
YPES-11-05-120
Instruction Manual No. YPES-15-119
YPES-15-550
Product Specification
Allowable Current(Ref.) Refer to the table of Housing
Low Level Contact Resistance Refer to the table of Housing
Insulation Resistance Refer to the table of Housing
Withstanding Voltage Refer to the table of Housing
Temperature Range Refer to the table of Housing
Application List of Installable Components
Wire Type Wire Size(mm2) Terminals
CAVS 0.3 to 0.5 7114-4102-02
CAVS 0.3 to 0.5 7114-4102-08
CAVS 0.5 7116-4025
CAVS 0.85 7116-4026
CAVS 0.5 7116-4028-08
CAVS 0.85 7116-4029-08
CAVS 0.3 to 0.5 7116-4102-02
CAVS 0.3 to 0.5 7116-4102-08
Show More
