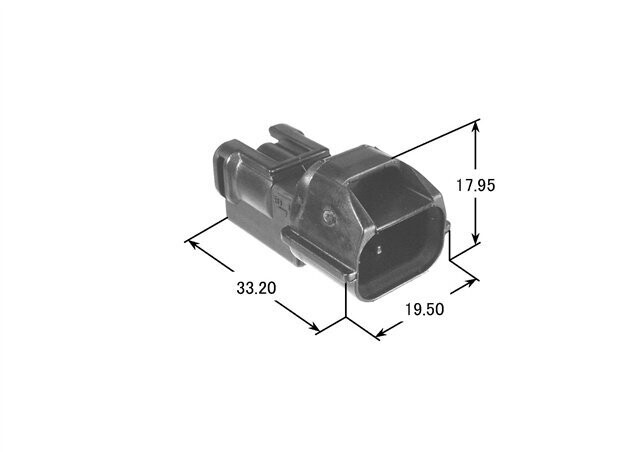

7182-8730-30 x 100pcs

7182-8730-30 x 100pcs

Store / SSD Connectors
£126.00
Estimated delivery time
Shipping: 14–19 days
In stock
Product Details
Classified Parts Housing
Family SSD Connectors
Type -
Yazaki Part Number 7182-8730-30
Connection Type Wire to Wire
Unsealed/Sealed Sealed
Male/Female Male
Number of Poles 3
Tab Width mm(inches) 1.2(048)
Material PBT
Plating -
Colour Black
Rating -
Mating Part Numbers 7283-8730-30
Product Specification No. YPES-11-04-029
Instruction Manual No. YPES-15-106
Product Specification
Allowable Current(Ref.) 5A(Ref)
Low Level Contact Resistance 3milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range -40 to 120deg.C
Application List of Installable Components
Terminals Wire Seals Holders
7114-1680-02 7157-3950-80 7157-4603-80
7114-1680-08 7157-3951-60
