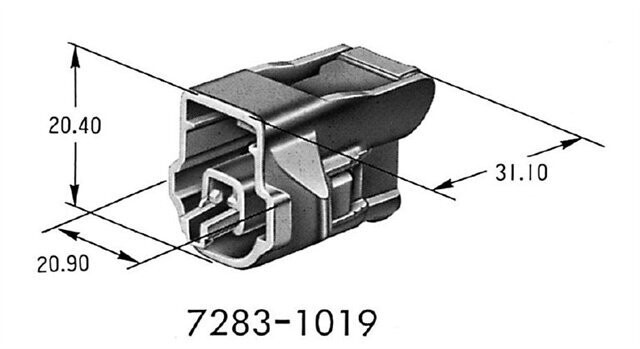

7283-1019 x 100pcs

7283-1019 x 100pcs

Store / 2.3II(090II) Connectors
£210.00
In stock
Product Details
Classified Parts Housing
Family 2.3II(090II) Connectors
Type -
Yazaki Part Number 7283-1019
Connection Type Wire to Wire
Wire to Board
Wire to Device
Unsealed/Sealed Sealed
Male/Female Female
Number of Poles 1
Tab Width mm(inches) 2.3(090)
Material PBT
Plating -
Colour Natural
Rating -
Mating Part Numbers
-
Product Specification No. YPES-11-04-019
Instruction Manual No. YPES-15-119
Product Specification
Allowable Current(Ref.) 10A(Ref)
Low Level Contact Resistance 3milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range -40 to 120deg.C
Application List of Installable Components
Terminals Wire Seals Holders
7116-4025 7157-3646 -
7116-4026 7157-3648
7116-4027 7157-3821
7116-4028-08 7157-3857-60
7116-4029-08 7158-3003-90_*6
- 7158-3004-40_*6
- 7158-3005-80_*6
- 7158-3006-90
- 7158-3007-10
- 7158-3008-80
