7283-7026-30 x 100pcs

7283-7026-30 x 100pcs

Store / 2.3II(090II) Connectors
£255.00
In stock
Product Details
Classified Parts Housing
Family 2.3II(090II) Connector
Replacement part number Mating Part Numbers 7282-7026-30
Connection Type Wire to Wire Unsealed/Sealed Sealed
Male/Female Female Number of Poles 2
Tab size (mm)
  • 2.30
 Materials PBT

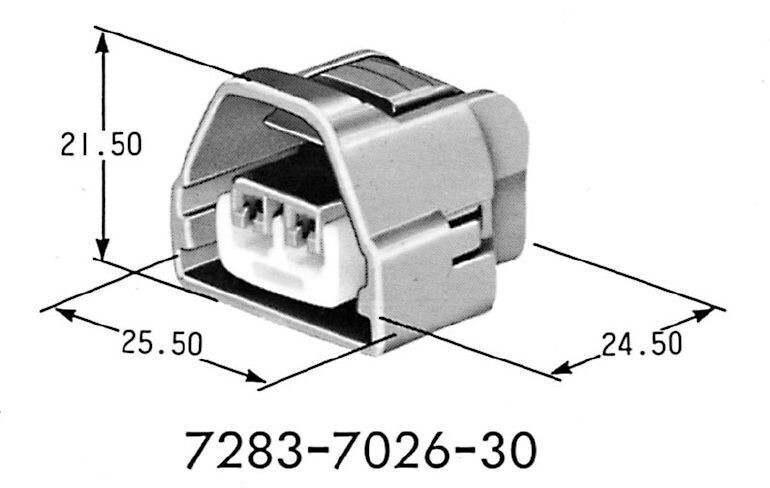

Size (mm)
(Outer shape
of parts)		 Length 24.50 Plating
Width 25.50 Color BLACK
Height 21.50 Hybrid NO
Clip installation structure NO Application bolt
Compatible hole
size (mm)		 Min Compatible plate
thickness (mm)		 Min
Max Max
Electric current classification
  • MEDIUM
Product standard No.
Handling manual No.

Product Specification

Allowable Current(Ref.) 10A(Ref) Low-voltage
low-current resistance		 3milli ohm Max.(Initial)
Insulation resistance 100Megohm Min.(at 500VDC) Withstand voltage 1000V AC (1min.)
Temperature Range -40 to 120deg.C

Application List of Installable Components

Terminal 7116-4025
7116-4026
7116-4027
7116-4028-08
7116-4029-08		 Wire seal 7157-3646
7157-3821
7158-3006-90
7158-3007-10
7158-3008-80
Dummy plug 7157-8761
7157-8767		 Installation possible part
