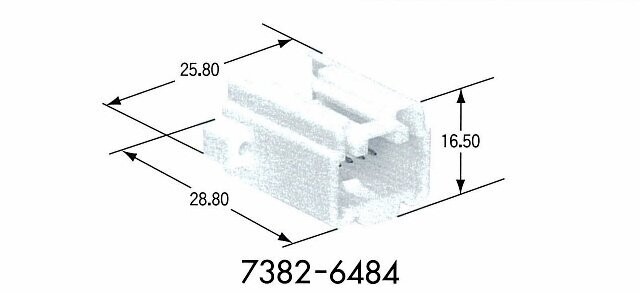

7382-6484

7382-6484

Store / 0.64(025) Connectors
£0.00
Sold out
Sold out
Product Details
Classified Parts Housing
Family 0.64(025) Connectors
Type -
Yazaki Part Number 7382-6484
Connection Type Wire to Board
Unsealed/Seald Unsealed
Male/Female Male
Number of Poles 12
Tab Width mm(inches) 0.64(025)
Material PBT
Plating -
Color Natural
Rating -
Mating Part Numbers 7283-6484
Product Specification No. YPES-11-05-134
Instruction Manual No. YPES-15-442
Product Specification
Allowable Current(Ref.) 3A(Ref)
Low Level Contact Resistance 5milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range *9 -30 to 80deg.C
